FlySpark F4 V1

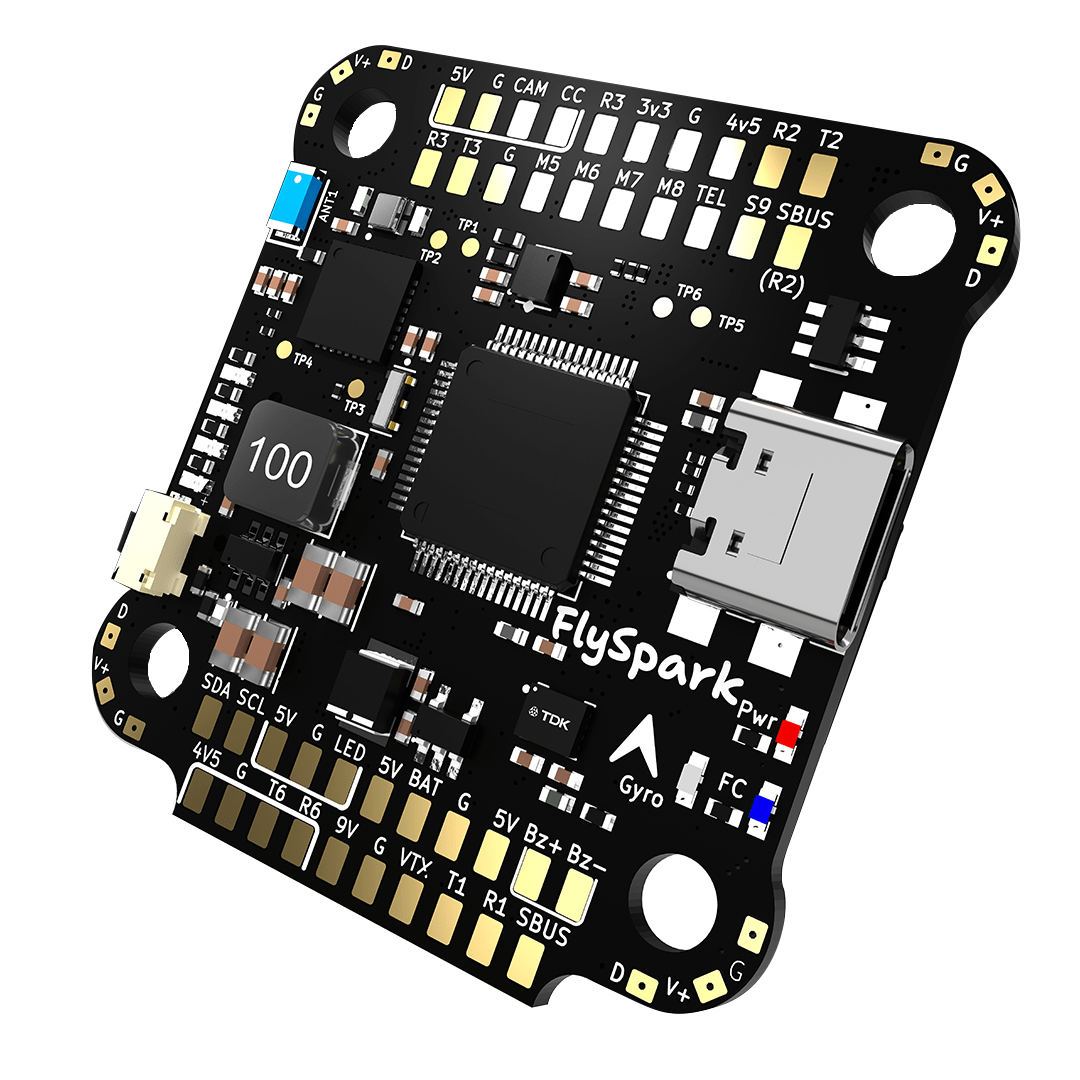

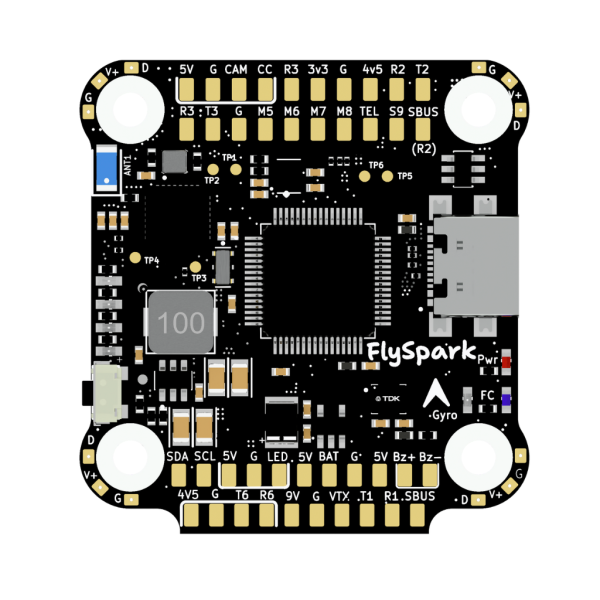

FLYSPARKF4 Top Angle Photo

Target:
FLYSPARKF4
MCU:
STM32F405RGT6
IMU:
ICM42688P
OSD:
MAX7456EUI+
Baro:
DPS310
Blackbox:
SD Card
Measurements:
Size: 47.8x47.5x18.3mm
Mounting: M4 30.5x30.5mm
Weight: 10.5g

Other Features​

  • SD Card Slot: Yes
  • Onboard Receiver: No
  • Hardware Inverter: Yes
  • Bluetooth: Yes
  • WiFi: No
  • Onboard RGB LED: No

Information​

info

FlySpark Website

Input/Output​

  • USB Connector: USB Type-C
  • Motor Outputs: 8x
  • UARTs: 4x
  • I2C: Yes
  • SWD: Yes (SWD - TP5, SWC - TP6)
  • SPI: No
  • 3.3V Output: Yes
  • 4.5V (VBUS) Output: Yes
  • 5V Output: 3A
  • 9V Output: 3A
  • Current Sensor: Yes
  • Analog RSSI Input: Yes
  • LED Strip Output: Yes
  • Buzzer Output: Yes

Pads​

UARTs​

NameLabelNotes
UART 1T1/R1
UART 2T2/R2SBUS
UART 3T3/R3
UART 5TELESC Telemetry
UART 6T6/R6

Power​

NameLabelCountNotes
3.3V1x
5V5V8x
9V9V1x
Battery VoltageBAT1x

ESC Signal​

NameLabelNotes
Battery VoltageBAT
GroundGND
TelemetryTEL
Signal 1M1
Signal 2M2
Signal 3M3
Signal 4M4
Signal 5M5
Signal 6M6
Signal 7M7
Signal 8M8

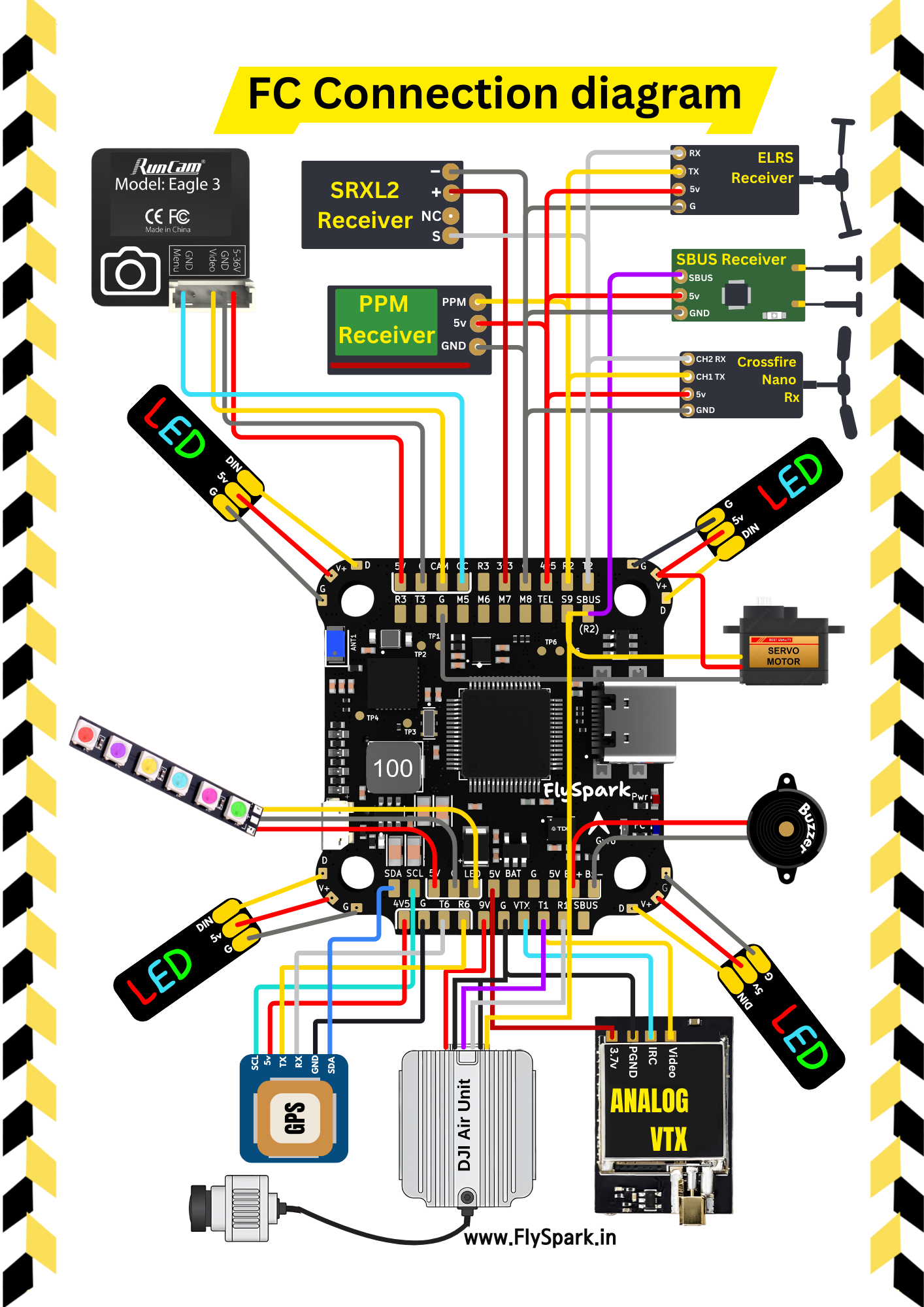

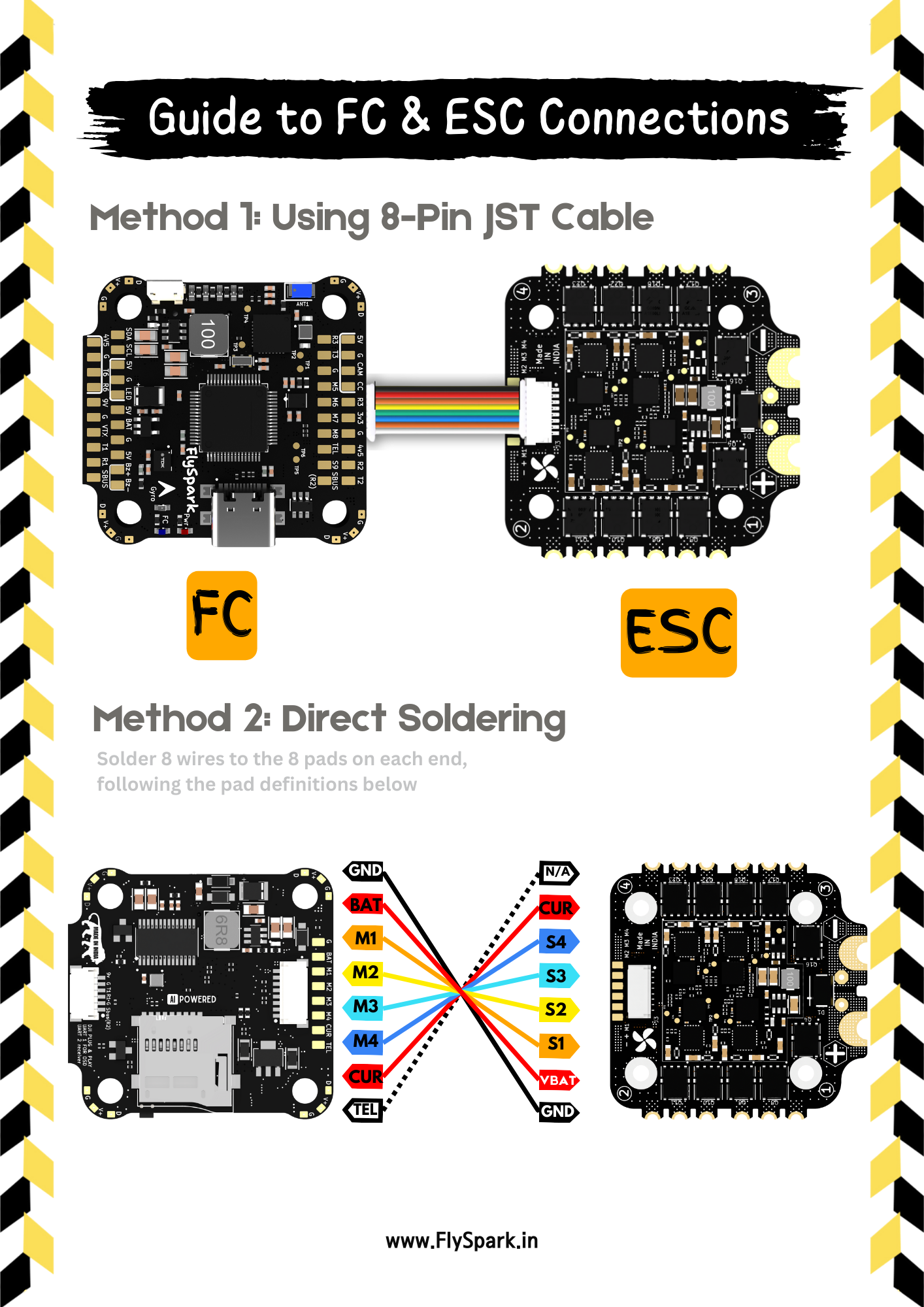

Connectors​

ESC 1-4​

Pin #NameLabelNotes
1TelemetryTEL
2CurrentCUR
3Signal 4M4
4Signal 3M3
5Signal 2M2
6Signal 1M1
7Battery VoltageBAT
8GNDG

Digital VTX​

Pin #NameLabelNotes
19V9V
2GroundG
3UART1 TXT1
4UART1 RXR1
5GroundG
6SBUSSbus (R2)
